Popis

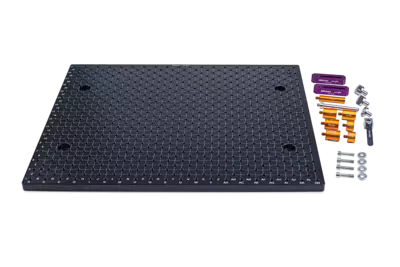

The eco-fix entry level starter kit can be used to for safe, flexible and repeatable 3 point set-up of a part in one plane.Scope of delivery:- basic eco-fix system components,
- 500 mm x 400 mm base plate with M6 threaded hole grid with a 12.5 mm / 25 mm grid distance.
For easy CMM mounting and serial measurements, please check our manual loading receiver system.
| Application: | CMM |
| Product line: | eco-fix |
| Component type: | Kit |
| Units: | 23 |
| Obsahuje: | Part No. | Qty. | Part name |
| Base Components | | |
| Base plate | | |
| K551533 | 1 | Base plate 500 mm x 400 mm |
| Build up Components | | |
| Columns | | |
| K551026 | 1 | Location pin ø 12 mm x 50 mm |
| K551028 | 2 | Location pin ø 20 mm x 13 mm |
| K551029 | 1 | Location pin ø 20 mm x 25 mm |
| K551043 | 3 | Location pin ø 20 mm with bore 8 mm |
| Brackets | | |
| K551036 | 2 | Receiver bracket large |
| Positioning Components | | |
| K551070 | 1 | Flat top ø 20 mm |
| K550982 | 1 | Stopper element |
| K550248 | 1 | Back square |
| Clamping Components | | |
| K550716 | 1 | Straight pin with thread, M6 x 75 mm |
| K550279 | 1 | Spring clip, ø 8 mm, L = 60 mm |
| Screws and Washers | | |
| K550110 | 4 | Cylinder head screw M6 x 20 mm |
| K550591 | 4 | Washer ø 6.4 mm x ø 17 mm |
| Total | 23 | |
