Popis

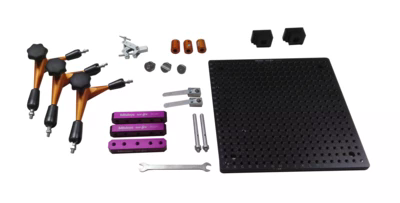

This eco-fix modular CMM fixturing kit can be used to for safe, flexible and repeatable clamping of a huge variety of parts. For quick application set up.Scope of delivery:- Basic eco-fix system components
- Flexible joint stands
- 250 mm x 250 mm base plate with M6 threaded hole grid with a 12.5 mm grid distance.
For easy CMM mounting and serial measurements, please check our manual loading receiver system.
| Application: | CMM |
| Product line: | eco-fix |
| Component type: | Kit |
| Units: | 21 |
| Obsahuje: | Part No. | Qty. | Part name |
| Base Components | | |
| Base plate | | |
| K551034 | 1 | Base plate 250 mm x 250 mm |
| K551032 | 2 | Clamping claw |
| Build up Components | | |
| Columns | | |
| K551043 | 3 | Receiver bolt ø 20 mm; bore Ø8 mm |
| K551303 | 3 | Joint stand eco-fix S20 |
| Brackets | | |
| K551227 | 3 | Receiving bracket for joint stand |
| Positioning Components | | |
| K551070 | 2 | Flat top ø 20 mm x 22 mm |
| K550982 | 1 | Stopper element ø 20 |
| Clamping Components | | |
| K550716 | 2 | Cylinder pin with thread, M6 x 75 mm |
| K550279 | 2 | Springclip without ball ø 8 x 60 mm |
| K551228 | 1 | Clamping thimble, KT1 Alu, M6 |
| Tools | | |
| K551229 | 1 | Double open ended wrench 7-8 mm |
| Total | 21 | |
