| Pôvodná cena | 22 250 Kč |
| Vaša cena bez DPH | 20 199 Kč |
20 199 Kč / ks | |
| DPH: | 21% |
| Jednotka: | ks |
| Kód 1: | K551231 |
| Značka: | Mitutoyo |

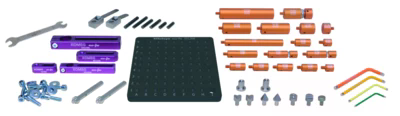

Application: CMMProduct line: eco-fixComponent type: KitUnits: 61Obsahuje: Part No.Qty. Part name Base Components Base plate K551306 1 Base plate 125 mm x 125 mm Build up Components Columns K551024 2 Location pin ø 12 mm x 13 mm K551025 2 Location pin ø 12 mm x 25 mm K551026 1 Location pin ø 12 mm x 50 mm K551027 1 Location pin ø 12 mm x 100 mm K551028 1 Location pin ø 20 mm x 13 mm K551029 1 Location pin ø 20 mm x 25 mm K551030 1 Location pin ø 20 mm x 50 mm K551031 1 Location pin ø 20 mm x 100 mm K551040 1 Adjustable location pin ø 20 mm K551041 2 Adjustable location pin ø 12 mm K551042 3 Location pin ø 12 mm with bore 6 mm Brackets K551035 1 Receiver bracket small K551036 1 Receiver bracket large K551044 1 Receiver bracket L = 90 mm, ø 12 mm K551045 1 Receiver bracket L = 120 mm, ø 20 mm K551046 1 Slotted nut for receiver bracket h = 12 mm K551047 1 Slotted nut for receiver bracket h = 15 mm Positioning Components K550262 2 V-block mini, ø12mm K550261 2 Cone receiver mini, ø12 mm K550250 1 Stopper element mini, ø 6 mm K550247 1 Back square mini, ø 6 mm K551069 1 Flat top ø 12 mm K550888 2 Straight pin ø 6 mm x 20 mm K550889 2 Straight pin ø 6 mm x 30 mm K550890 2 Straight pin ø 6 mm x 40 mm Clamping Components K550716 2 Straight pin with thread, M6 x 75 mm K550279 1 Spring clip, ø 8 mm, L = 60 mm K550554 1 Spring clip, ø 8 mm, L = 40 mm Screws and Washers K550563 2 Cylinder head screw M6 x 25 mm K550110 6 Cylinder head screw M6 x 20 mm K550591 8 Washer ø 6.4 mm x ø 17 mm Tools K551050 1 Allen key 2 mm K551051 1 Allen key 3 mm K551052 1 Allen key 4 mm K551053 1 Allen key 5 mm K551054 1 Double open-ended spanner 10-17 Total 61
| Provedení |
Provedení
sada |
