Vybavení a příslušenstvíUpínací přípravkySúprava eco-fix plus L, doska 500x400x25 mm, 167dielna CMM fixtures, eco-fix plus KOMEG (K551289)

Súprava eco-fix plus L, doska 500x400x25 mm, 167dielna CMM fixtures, eco-fix plus KOMEG (K551289)

Tento tovar je na predaj len registrovaným

Pôvodná cena	95 850 Kč
Vaša cena bez DPH	87 013 Kč
87 013 Kč / ks

Dodací lhůta: na vyžádání

DPH:	21%
Jednotka:	ks
Kód 1:	K551289
Značka:	Mitutoyo

Popis

The eco-fix^plus fixturing system,comprised of solid and rigid stainless steel components, is made for large, heavy workpieces.
It significantly reduces the requirement for custom-made solutions due to weight or dimension.
Repeatable set-up configurations and high durability are only some of the advantages this product range has to offer.

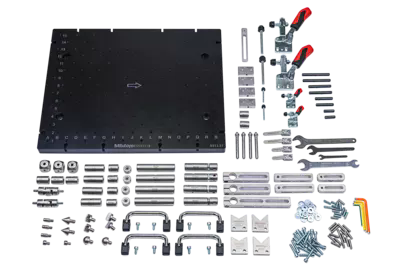

Scope of delivery:

basic eco-fix^plus system components
4pcs. handles for easy handling of fixture and workpiece
500 mm x 400 mm x 25 mm base plate with M6 threaded hole grid with a 50 mm grid distance

Fully compatible with the eco-fix product range.

Application:	CMM
Product line:	eco-fixplus
Component type:	Kit
Units:	166
Obsahuje:	Part No.	Qty.	Part name
	Base Components
	Base plate
	K551137	1	Base plate eco-fixplus 500x400mm
	Handles
	K551199	2	2pcs. Handles for eco-fix base plates
	Build up Components
	Columns
	K551061	2	Adjustable receiver bushing, 8H7 bore
	K551249	2	Adjustable location pin with M6 thread.
	K550521-10	3	Cube M6
	K550529-10	2	Joint eco-fixplus
	K551236	4	Location pin eco-fixplus Ø20,0 x 13,0mm.
	K551237	4	Location pin eco-fixplus ø20x25mm
	K551238	4	Location pin eco-fixplus ø20x50mm
	K551239	4	Location pin eco-fixplus ø20x100mm
	K551240	3	Location pin eco-fixplus ø8H7
	Brackets
	K550345-10	2	Receiver bracket M6 L=100
	K551246	2	Receiver bracket eco-fixplus M6 L=70mm
	K551247	2	Receiver bracket eco-fixplus L=120mm
	K551248	1	Receiver bracket eco-fixplus L=170mm
	Positioning Components
	K550335-10	3	Connector with 8 mm fitting bore.
	K550340	2	Prism 90°
	K550341	2	Prism 120°
	K550058	2	V-anvil insert ø 20 mm
	K550248	2	Backsquare insert ø 20 mm
	K551072	2	Sphere top insert ø 20 mm
	K550365	2	Cone receiver insert ø 20 mm
	K550982	2	Stopper insert ø 20 mm
	K550000	2	Straight pin stopper d=8mm L=30mm
	K550001	2	Straight pin stopper d=8mm L=50mm
	K550002	2	Straight pin stopper d=8mm L=65mm
	K550003	2	Straight pin stopper d=8mm L=80mm
	K550557-10	16	Headless screw 25,0 mm
	K550592-10	16	Headless screw 20,0 mm
	Clamping Components
	K550554	2	Spring clip bore Ø = 8 mm L = 40 mm
	K550279	2	Spring clip bore Ø = 8 mm L = 60 mm
	K550716	4	Straight pin for spring clips ø 12 mm
	K551242	2	Magnetic receiver
	K550009-10	2	Toggle clamp M8
	K550012-10	2	Pressure spindle M8
	K550522-10	4	Fastening element for toggle clamps
	K550536-10	1	Clamping extension M8 for K550009
	K550010-10	2	Toggle clamp M4
	K550013-10	2	Pressure spindle M4, L = 28,0 mm
	Screws
	K550564	20	Screw M 6 x 30mm
	K550591	20	Washer 6,4mm x 17mm
	Tools
	K551054	1	Double open-ended spanner SW 10-17
	K551050	1	Allen key 2 mm
	K551051	1	Allen key 3 mm
	K551052	1	Allen key 4 mm
	K551053	1	Allen key 5 mm
	K550367	1	Open-end spanner SW 19
	K550131	1	Open-end spanner SW 7
	K550130	1	Open-end spanner SW 13
	Total	166
