| Pôvodná cena | 32 075 Kč |
| Vaša cena bez DPH | 26 163 Kč |
| DPH: | 21% |
| Jednotka: | sada |
| Kód 1: | K551279 |
| EAN: | 4250516617452 |
| Značka: | Mitutoyo |

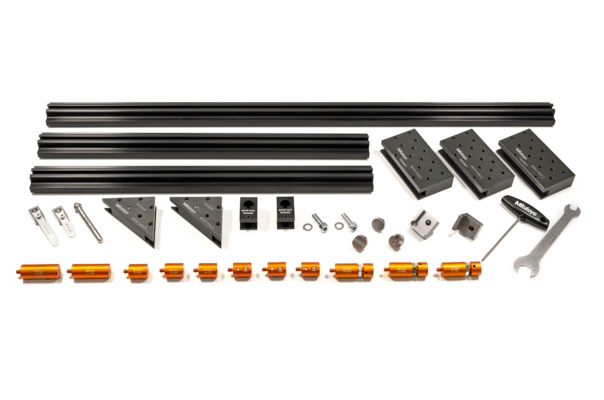

This eco-fixrail modular CMM fixturing kit ensures fast and repeatable part positioning for quick application set up
Scope of delivery:
basic eco-fix system components.
positioning rails
| Popis: | The Mitutoyo eco-fix rail system defines flexibility in modular CMM fixturing. |
| Guide rails can be mounted on the CMM in next to no time. | |
| By sliding the base elements with the integrated build-up components already attached, the stepless on-rail positioning assures an ultra-fast setup | |
| of fixturing positions. The basic kit K551279 features all required components for a three-point setup with secure positioning via spring clamping. | |
| Footprint: 800,00 mm x 500,00 mm | |
| The full compatibility of the eco-fix and eco-fixplus product ranges enable the extension of the fixturing setup at any time and additionally | |
| increases performance and flexibility. Mitutoyo fixture equipment has been designed and manufactured in Germany for over 35 years with | |
| uncompromising precision in mind. Choosing Mitutoyo is clear when it comes to fixture systems thanks to their essential aspects of universality, | |
| flexibility, and efficiency. | |
| Mitutoyo fixtures: For measurably better results. | |
| Applicable from 574 CMM models upwards. | |
| Scope of delivery: | |
| ● basic eco-fix system components. | |
| ● positioning rails | |
| ●Total 31pcs. | |
| Hmot.: | 0 g |
| Application: | CMM |
| Product line: | eco-fix |
| eco-rail | |
| Component type: | Kit |
| Units: | 31 |
OBSAHUJE:
| Part No. | Qty. | Part name |
| Base Components | ||
| Rails | ||
| K551273 | 1 | Clamping profile rail 800 mm |
| K551271 | 2 | Clamping profile rail with slot 500 mm |
| K550908 | 2 | Clamping claw |
| K550909 | 2 | Corner connector |
| K550907 | 3 | Clamping plate |
| Build up Components | ||
| Columns | ||
| K551043 | 3 | Location pin ø 20 mm with bore 8 mm |
| K551029 | 2 | Location pin ø 20 mm x 25 mm |
| K551030 | 3 | Location pin ø 20 mm x 50 mm |
| K551040 | 3 | Adjustable location pin ø 20 mm |
| Positioning Components | ||
| K550282 | 1 | Stopper element ø 20 mm |
| K550261 | 1 | Back square ø 20 mm |
| K551070 | 1 | Flat top ø 20 mm |
| K550042 | 1 | Back square 30 mm x 30 mm |
| K550249 | 1 | Stopper element 30 mm x 25 mm |
| Clamping Components | ||
| K550716 | 1 | Straight pin with thread, M6 x 75 mm |
| K550279 | 1 | Spring clip, ø 8 mm, L = 60 mm |
| K550554 | 1 | Spring clip, ø 8 mm, L = 40 mm |
| Tools | ||
| K551261 | 1 | Hexagon spanner with t-handle |
| K551054 | 1 | Double open-ended spanner 10-17 |
| Total | 31 |
