Popis

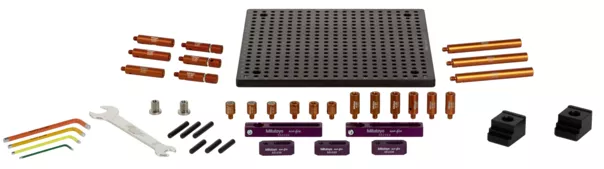

This eco-fix modular CMM fixturing kit can be used to for safe, flexible and repeatable clamping of a huge variety of parts. Scope of delivery:
basic eco-fix system components, incl. magnetic receiver elements
250 mm x 250 mm base plate with M6 threaded hole grid with a 12.5 mm grid distance. For easy CMM mounting and serial measurements, please check our manual loading receiver system.
| Popis: | This eco-fix modular CMM fixturing kit can be used to for safe, flexible and repeatable clamping of a huge variety of parts. |
| Scope of delivery: |
| ● basic eco-fix system components, incl. magnetic receiver elements |
| ● 250 mm x 250 mm base plate with M6 threaded hole grid with a 12.5 mm grid distance. |
| |
| For easy CMM mounting and serial measurements, please check our manual loading receiver system. |
| Hmot.: | 2570 g |
| Application: | CMM |
| Product line: | eco-fix |
| Component type: | Kit |
| Units: | 70 |
OBSAHUJE:
| Part No. | Qty. | Part name |
| Base Components | | |
| Base plate | | |
| K551034 | 1 | Base plate 250 mm x 250 mm |
| K551032 | 2 | Clamping claw |
| Build up Components | | |
| Columns | | |
| K551024 | 3 | Location pin ø 12 mm x 13 mm |
| K551025 | 3 | Location pin ø 12 mm x 25 mm |
| K551026 | 3 | Location pin ø 12 mm x 50 mm |
| K551027 | 3 | Location pin ø 12 mm x 100 mm |
| K551041 | 3 | Adjustable location pin ø 12 mm |
| K551042 | 3 | Location pin ø 12 mm with bore 6 mm |
| Brackets | | |
| K551035 | 3 | Receiver bracket small |
| K551044 | 2 | Receiver bracket L = 90 mm, ø 12 mm |
| K551046 | 2 | Slotted nut for receiver bracket h = 12 mm |
| Positioning Components | | |
| K550889 | 3 | Straight pin ø 6 mm x 30 mm |
| K550890 | 3 | Straight pin ø 6 mm x 40 mm |
| Clamping Components | | |
| K551073 | 3 | Magnetic receiver ø 12 mm |
| Screws and Washers | | |
| K550563 | 5 | Cylinder head screw M6 x 25 mm |
| K550110 | 10 | Cylinder head screw M6 x 20 mm |
| K550591 | 15 | Washer ø 6.4 mm x ø 17 mm |
| Tools | | |
| K551050 | 1 | Allen key 2 mm |
| K551051 | 1 | Allen key 3 mm |
| K551052 | 1 | Allen key 4 mm |
| K551053 | 1 | Allen key 5 mm |
| K551054 | 1 | Double open-ended spanner 10-17 |
| Total | 72 | |
