| Pôvodná cena | 123 900 Kč |
| Vaša cena bez DPH | 112 476 Kč |
112 476 Kč / ks | |
| DPH: | 21% |
| Jednotka: | ks |
| Kód 1: | K551291 |
| Značka: | Mitutoyo |
Fully compatible with the eco-fix product range.
| Application: | CMM | ||
| Product line: | eco-fixplus | ||
| Component type: | Kit | ||
| Units: | 258 | ||

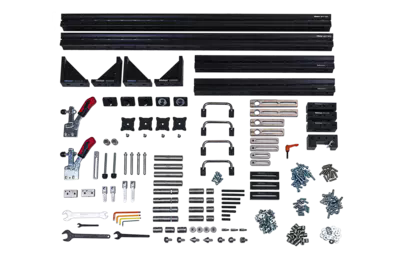

| Obsahuje: | Part No. | Qty. | Part name |
| Frame components | |||
| Profiles | |||
| K551115 | 4 | Cover plate multiflexprofile | |
| K551112 | 2 | multiflexprofile 1000mm | |
| K551110 | 2 | multiflexprofile 500mm | |
| Handles | |||
| K551199 | 2 | 2pcs. Handles for eco-fix base plates | |
| K551158 | 8 | Sliding block M6 multiflexprofile | |
| Angles | |||
| K550509 | 4 | Angle 100/100 f. right-angled connection | |
| K551158 | 16 | Sliding block M6 multiflexprofile | |
| K550461-10 | 16 | Positioning pin | |
| K550563 | 16 | Screws | |
| 3 point positioning | |||
| K551280 | 2 | Adjustable foot for multiflexprofile | |
| K551281 | 3 | Fixed foot for multiflexprofile | |
| K551158 | 5 | Sliding block M6 multiflexprofile | |
| K550563-10 | 5 | Screws | |
| Build up Components | |||
| Slider components | |||
| K550957 | 1 | Slider element | |
| K502620 | 1 | Clamp lever | |
| Build-up plates | |||
| K551120 | 3 | End plate 100 (Fl. 50x25x100) | |
| K551158 | 6 | Sliding block M6 multiflexprofile | |
| K550563-10 | 6 | Screws | |
| K550461-10 | 6 | Positioning bushing 12,5mm | |
| Columns | |||
| K551061 | 2 | Adjustable receiver bushing, 8H7 bore | |
| K551249 | 2 | Adjustable location pin with M6 thread. | |
| K550557-10 | 16 | Headless screw 25,0 mm | |
| K550592-10 | 16 | Headless screw 20,0 mm | |
| K551236 | 4 | Location pin eco-fixplus Ø20,0 x 13,0mm. | |
| K551237 | 4 | Location pin eco-fixplus ø20x25mm | |
| K551238 | 4 | Location pin eco-fixplus ø20x50mm | |
| K551239 | 4 | Location pin eco-fixplus ø20x100mm | |
| K551240 | 3 | Location pin eco-fixplus ø8H7 | |
| Brackets | |||
| K550345 | 2 | Receiver bracket M6 L=100 | |
| K551246 | 2 | Receiver bracket eco-fixplus M6 L=70mm | |
| K551247 | 2 | Receiver bracket eco-fixplus L=120mm | |
| K551248 | 1 | Receiver bracket eco-fixplus L=170mm | |
| K550605-10 | 3 | Receiver bracket w.pin hole L = 100 mm | |
| Positioning Components | |||
| K550335-10 | 3 | Connector with 8 mm fitting bore. | |
| K550058 | 2 | V-anvil insert ø 20 mm | |
| K550248 | 1 | Backsquare insert ø 20 mm | |
| K550365 | 2 | Cone receiver insert ø 20 mm | |
| K551072 | 2 | Sphere top insert ø 20 mm | |
| K550000 | 2 | Straight pin stopper d=8mm L=30mm | |
| K550001 | 2 | Straight pin stopper d=8mm L=50mm | |
| K550002 | 2 | Straight pin stopper d=8mm L= 65mm | |
| K550003 | 2 | Straight pin stopper d=8mm L=80mm | |
| Clamping Components | |||
| K550554 | 2 | Spring clip bore Ø = 8 mm L = 40 mm | |
| K550279 | 2 | Spring clip bore Ø = 8 mm L = 60 mm | |
| K550716 | 4 | Straight pin for spring clips ø 12 mm | |
| K551242 | 2 | Magnet receiver | |
| K550009-10 | 2 | Toggle clamp M8 | |
| K550012-10 | 2 | Pressure spindle M8, L = 80,0 mm | |
| K550522-10 | 2 | Fastening element for toggle clamps | |
| K550536-10 | 1 | Extension Bracket for K550009 | |
| Screws | |||
| K550564 | 20 | Screw M 6 x 30mm | |
| K550591 | 20 | Washer 6,4mm x 17mm | |
| Tools | |||
| K551054 | 1 | Double open-ended spanner SW 10-17 | |
| K551050 | 1 | Allen key 2 mm | |
| K551051 | 1 | Allen key 3 mm | |
| K551052 | 1 | Allen key 4 mm | |
| K551053 | 1 | Allen key 5 mm | |
| K550367 | 1 | Open-end spanner SW 19 | |
| K550131 | 2 | Open-end spanner SW 7 | |
| K550130 | 2 | Open-end spanner SW 13 | |
| Total | 258 | ||
| Provedení |
Provedení
sada |
